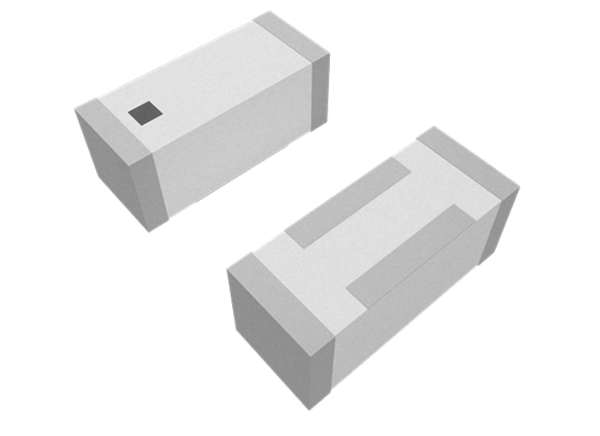

Abracon AANI-CH BLUETOOTH®/Wi-Fi® Chip Antennas

Abracon AANI-CH BLUETOOTH^®/ Wi-Fi^® Chip Antennas are designed to deliver high-performance wireless connectivity in compact applications requiring reliability and space efficiency. These surface-mount antennas feature a miniaturized ceramic package, RoHS/RoHS II compliance, and PCB corner-mount integration. The series offers low return loss and an operating temperature range of -40°C to +85°C. These AANI-CH chip antennas from Abracon provide seamless integration in a wide range of applications, such as Bluetooth, Zigbee^®, Thread, Matter, Wi-Fi, medical, wearable, and smart applications.

Features

Miniaturized size
Low return loss
SMD design
PCB corner-mount integration

Ceramic material
RoHS/RoHS II compliant
Moisture sensitivity level (MSL) 1

Applications

Bluetooth / Zigbee / Thread / Matter / Wi-Fi
Bluetooth / Wi-Fi modules
Consumer hearables and wearables
Medical wearables and telemedicine
Smart homes and smart buildings

Asset tracking and telematics
Smart metering
Intelligent lighting
Wireless remote controls

Specifications

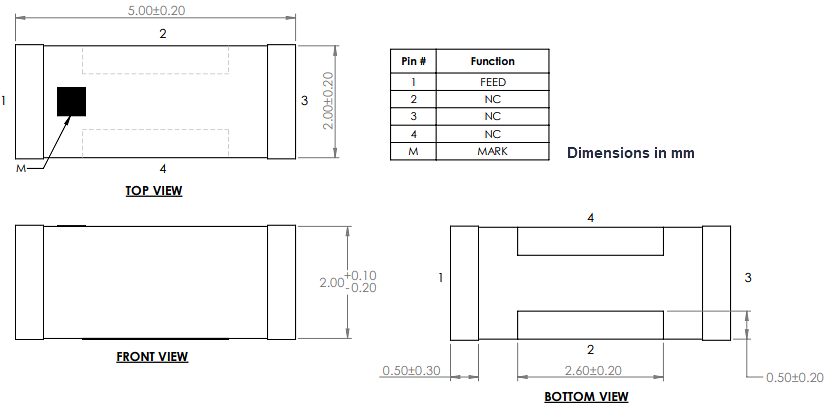

AANI-CH-0068
- 5mm x 2mm x 2mm dimensions
- 2400MHz to 2500MHz operating frequency range
- <-15.4dB return loss
- 2.7dBi peak gain
- -1.3dB (75%) average total efficiency
- -40°C to +85°C operating temperature range

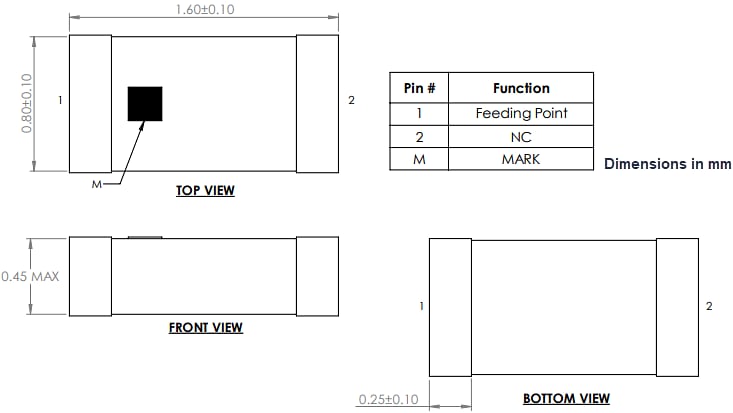

AANI-CH-0133
- 1.6mm x 0.8mm x 0.4mm dimensions
- 2400MHz to 2500MHz operating frequency range
- <-9.3dB return loss
- 1.1dBi peak gain
- -3.1dB (49%) average total efficiency
- -40°C to +85°C operating temperature range
