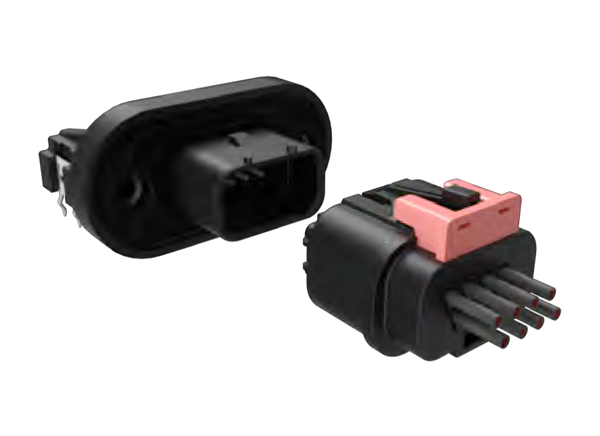

Amphenol FCI Minitek MicroSpaceXS™ Waterproof 1.27mm Connectors
Amphenol FCI Minitek MicroSpaceXS™ Waterproof 1.27mm Crimp-to-Wire Connectors are LV214 Severity-3 and USCAR-T2V2 compatible. These 1.27mm pitch connectors are available with a current rating of up to 3A per contact, making them ideal for higher power applications. The series is available in staggered vertical and horizontal configurations with PIP soldering and tin or gold plating. Amphenol FCI Minitek MicroSpaceXS Waterproof 1.27mm Crimp-to-Wire Connectors are suitable for a variety of automotive applications.
Features
- Mechanical connector position assurance (CPA) ensures proper mating and avoids unintentional trigger of the latch
- Terminal position assurance (TPA) ensures proper terminal insertion position and retention
- Up to 3A current rating per contact
- Poka-Yoke polarization and color-coding prevents visual mismatch
- Meets higher power performance requirements
- 4N normal force for vibration and >75N connector locking strength
Applications
- Automotive
- Lighting
- Cameras / Sensors
- Infotainment
- HVAC
- Battery management
