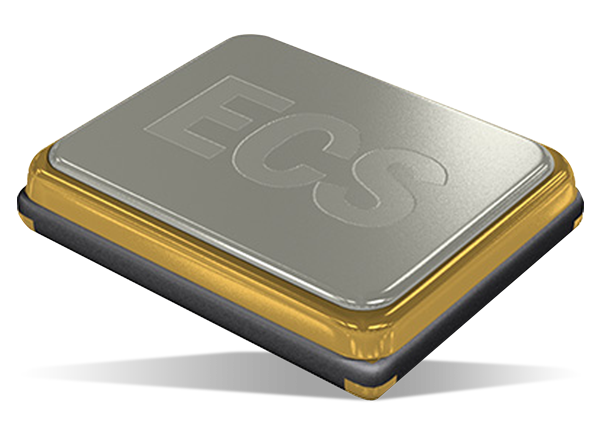

ECS ECX-1637B SMD Crystals are available in a sub-miniature ceramic package measuring 2.0mm x 1.6mm x 0.45mm. These crystals feature low first-year aging of ±1ppm maximum, 16MHz to 50MHz frequency range, and 3pF shunt capacitance. This series is RoHS compliant and offers an extended temperature range option of -55°C to +125°C. ECS ECX-1637B SMD Crystals are ideal for wireless applications, including the Internet of Things (IoT), medical, Wi-Fi®, and BLUETOOTH®.
2.0mm x 1.6mm x 0.45mm ceramic package
Low first-year aging of ±1ppm maximum
16MHz to 50MHz frequency range
3pF shunt capacitance
100µW drive level
-30°C to +85°C operating temperature range
-55°C to +125°C storage temperature range
