MaxLinear Ethernet Switches

MaxLinear Ethernet Switches are highly integrated solutions that provide the connectivity required for bandwidth-hungry video streaming, gaming, and video conferencing. The 1Gb Ethernet Switches offer Smart LED brightness control integrated for power saving in a small footprint.

The GSW120, GSW140, and GSW141 devices are feature integrated, non-blocking four-port (GSW120) or six-port (GSW140 and GSW141) Gigabit Ethernet QoS switches with two (GSW120) or four (GSW140 and GSW141) Ethernet PHY, one 1G RGMII, one 2.5G SGMII+ (GSW120 and GSW140) or one 1G SGMII (GSW141), and one management port.

The MaxLinear Ethernet Switches are ideal for next-generation routers, switches, and gateways.

Applications

  • Home gateways
  • Standalone switches plus 2.5G uplink

Associated Products

MaxLinear Ethernet PHY Transceivers

2.5GbE PHY Ethernet transceivers that are suited for routers, switches, and home gateways.

Learn Moreacerca de MaxLinear Ethernet PHY Transceivers View Productsrelacionado con MaxLinear Ethernet PHY Transceivers

Associated Eval Boards

MaxLinear Ethernet Evaluation Boards

Configured to evaluate the operation of the MaxLinear Ethernet Switches.

Learn Moreacerca de MaxLinear Ethernet Evaluation Boards View Productsrelacionado con MaxLinear Ethernet Evaluation Boards

MaxLinear GPY21x Evaluation Boards

2.5G PHY boards that are designed to evaluate the GPY211, GPY212, and GPY215 Ethernet transceivers.

Learn Moreacerca de MaxLinear GPY21x Evaluation Boards View Productsrelacionado con MaxLinear GPY21x Evaluation Boards

Additional Resources

GSW140 Block Diagram

Block Diagram - MaxLinear Ethernet Switches

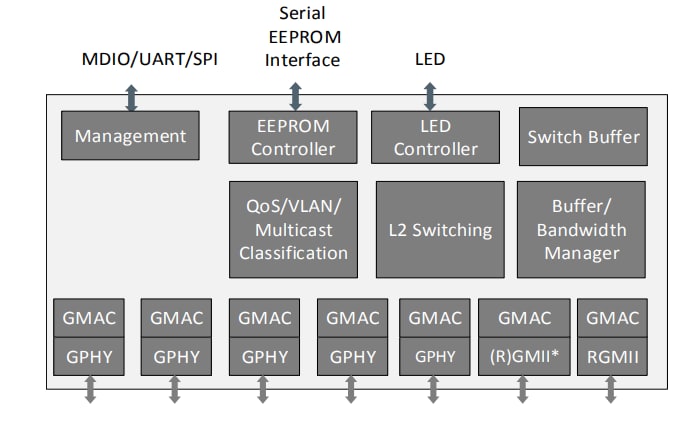

GSW150 Block Diagram

Block Diagram - MaxLinear Ethernet Switches
View Results ( 7 ) Page
N.º de artículo Hoja de datos Descripción
GSW120A3MC GSW120A3MC Hoja de datos Circuitos integrados de Ethernet GSW120 - 1G Switch, 4 port, 2 PHYs, RGMII & SGMII, MRQFN-105
GSW140A3LC GSW140A3LC Hoja de datos Circuitos integrados de Ethernet GSW140 - 1G Switch, 6 port, 4 PHYs, RGMII & SGMII+, LGA-105
GSW145-AQM-T GSW145-AQM-T Hoja de datos Circuitos integrados de Ethernet GSW145 - 1G Switch, 6 port, 4 PHYs, RGMII & SGMII+, MRQFN-105 (I-temp)
GSW140A3MC GSW140A3MC Hoja de datos Circuitos integrados de Ethernet GSW140 - 1G Switch, 6 port, 4 PHYs, RGMII & SGMII+, MRQFN-105
GSW141A3MC GSW141A3MC Hoja de datos Circuitos integrados de Ethernet GSW141 - 1G Switch, 6 port, 4 PHYs, RGMII & SGMII, MRQFN-105
GSW120A3LC GSW120A3LC Hoja de datos Circuitos integrados de Ethernet 1G Switch, 4 port, 2 PHYs, RGMII & SGMII
GSW141A3LC GSW141A3LC Hoja de datos Circuitos integrados de Ethernet GSW141 - 1G Switch, 6 port, 4 PHYs, RGMII & SGMII, LGA-105
Publicado: 2021-11-01 | Actualizado: 2023-07-19
