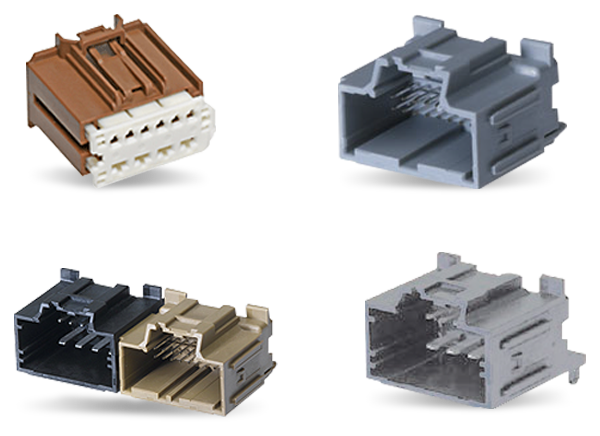

Molex Stac64 Automotive Connection System

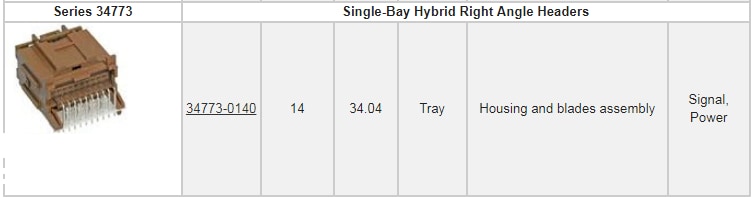

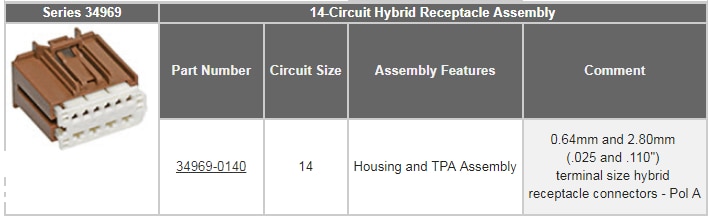

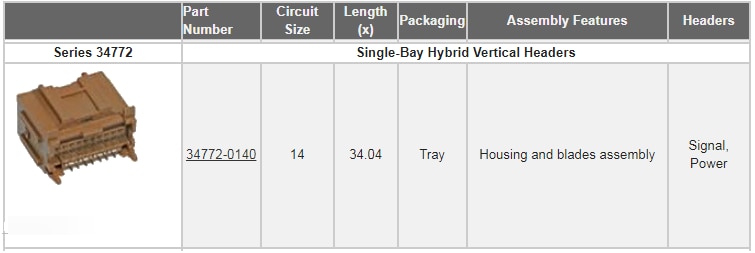

Molex Stac64 Automotive Connection System now includes 14 circuit hybrid headers and receptacles. Molex Stac64 Automotive Connection System is a 2.54mm (.100") Pitch, stackable connection system offering a diverse range of circuit sizes. Requiring no custom tooling, the Stac64 system allows OEM and device manufacturers greater design flexibility to support both low-level signal requirements as well as power applications upwards of 30A. Molex STAC64 Automotive Connection System also allows automotive manufacturers to use header assemblies as stand-alone components, to gang multiple headers together to support a large range of signal and power needs for devices and modules.

The Molex Stac64 is a standard product system based on USCAR-2 Class II mechanical and electrical performance characteristics for unsealed connector applications. The connectors mate to existing wire-harness connectors designed to the USCAR/EWCAP industry footprints.

224451 Series Specialized Cables

224452 Series Specialized Cables

224572 Series Specialized Cables

Features

Stackable and modular 2.54mm pitch PCB headers
Selection of 0.64mm, 1.5mm, and 2.8mm terminals
Validated to USCAR Class 2 requirements
Housing molded to standard USCAR color codes

PCB-alignment posts
PCCB stand-ffs molded into housings
High-temperature thermoplastic housings
Right-angle headers with hard plastic Pin-Alignment Plate (PAP)

Specifications

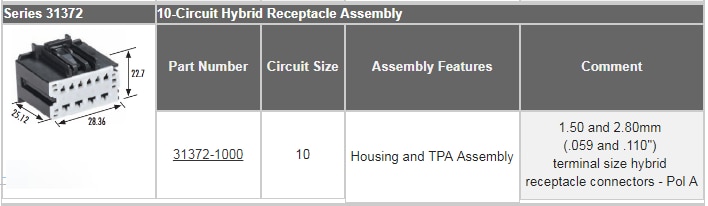

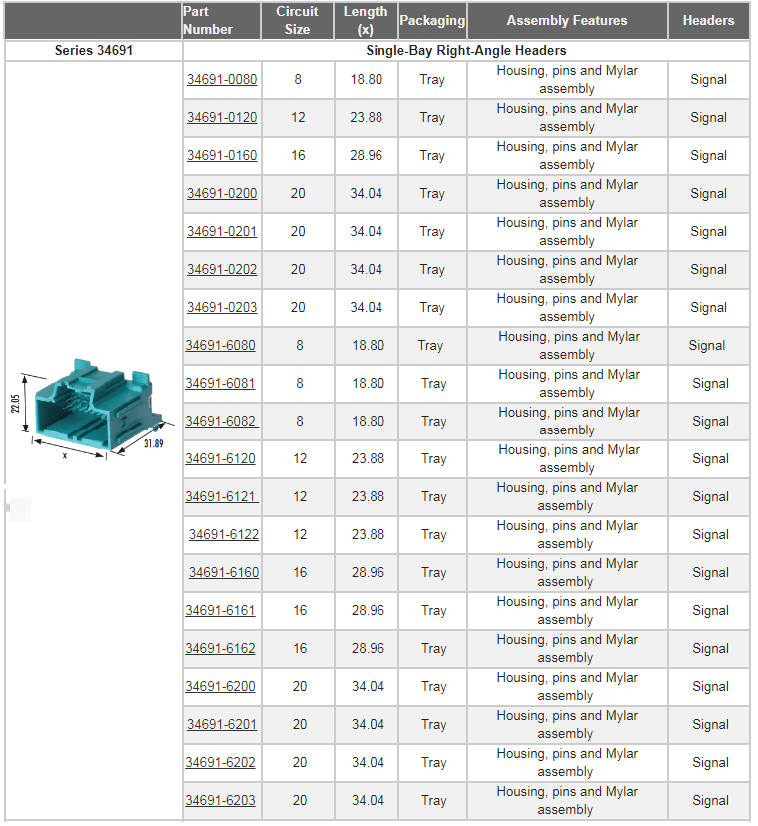

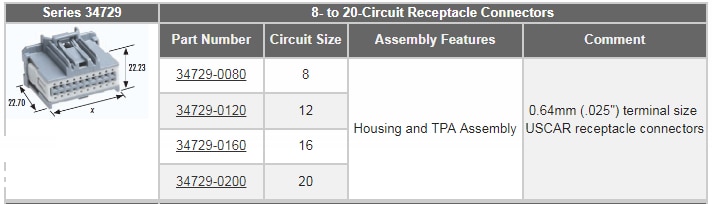

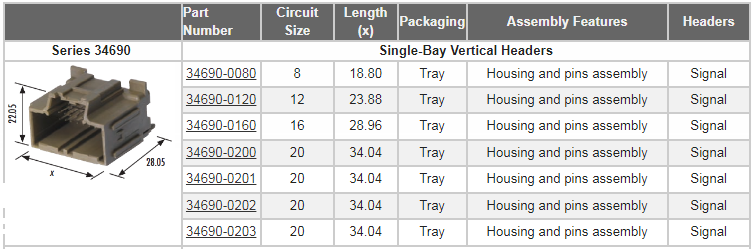

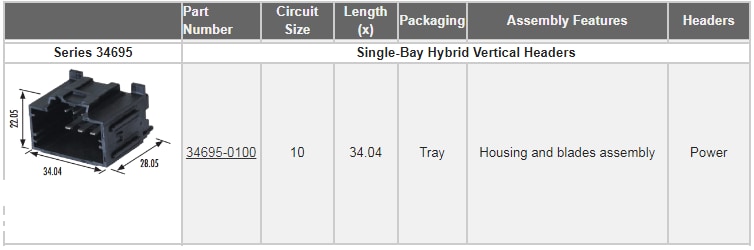

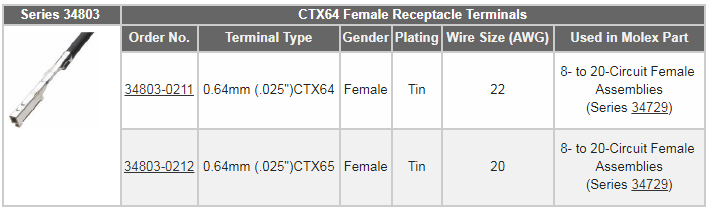

Female connector series 34729 and 31372 mate to male unsealed header series 34690, 34691, 34695
500V electrical voltage
Mechanical / Electrical:
- Mating & unmating force of less than 60N (13.5 lbf)

Physical:
- 30% glass filled SPS/nylon blend harness housing
- 15% glass filled polyester TPAs
- 305 glass filled SPS header housing
- -40°C to +100°C operating temperature range

Applications

Automotive Vehicles:
- Radios / DVD - Entertainment
- Interior lighting and navigation
- Instrument panel clusters
- Power seat modules
- Door zone modules
