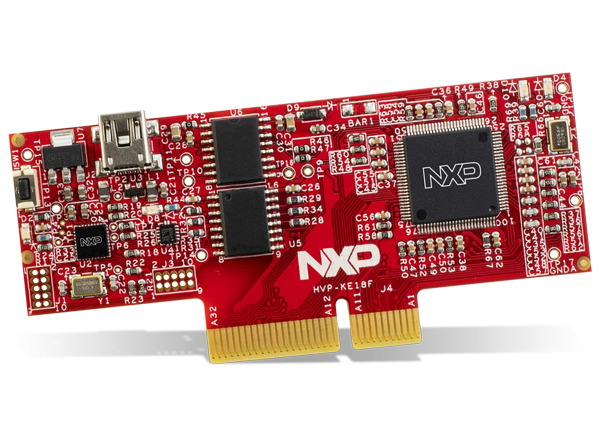

NXP Semiconductors HVP-KE18F Controller Card
NXP Semiconductors HVP-KE18F Controller Card is a development platform for the Kinetis® KE1xF Microcontrollers. This controller card accommodates target MCU MKEV18512VLL16 and provides SWD isolation up to 5KV. The HVP-KE18F controller card comes with a programmable OpenSDA v2 platform pre-loaded with CMSIS-DAP interface. This controller card features an optimized design for low noise and onboard serial line isolation that allows safe debugging and safe user interface. NXP Semiconductors HVP-KE18F controller card, along with HVP-MC3PH, provides ready-made software and hardware development for high-voltage motor control and power conversion applications.
Features
- Development platform for the Kinetis KE1xF MCUs
- Accommodates target MCU MKE18F512VLL16
- Programmable OpenSDA v2 platform pre-loaded with CMSIS-DAP interface
- SWD isolation up to 5KV
- Design optimized for low noise
- Onboard serial line isolation that allows safe debugging and safe user interface

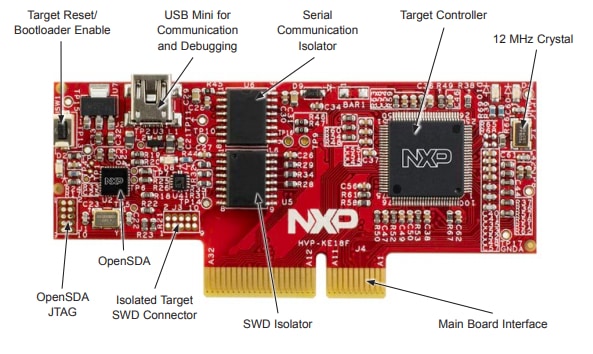

HVP-KE18F Card Overview
Associated Product
NXP Semiconductors Kinetis KE1xF Microcontrollers
High-performance microcontrollers based on the ARM® Cortex®-M4 core running at up to 168MHz.
