Renesas / Dialog DA14581 Low Power BLUETOOTH Smart SoC

Renesas / Dialog DA14581 Low Power BLUETOOTH® Smart SoC is a small, low power, and integrated BLUETOOTH® Smart solution for A4WP wireless charging and HCI applications. It is an optimized version of the outstanding DA14580 SoC. Fast boot time for the Power Receiving Unit (PRU) and 8 connections for the Power Transmitting Unit (PTU) make the DA14581 a perfect solution for A4WP. The optimized code for HCI, which fits into the DA14581's OTP memory, enables you to create a pre-programmed HCI device. It has a fully integrated radio transceiver and a baseband processor for Bluetooth Smart. It can be used as a standalone application processor or as a data pump in hosted systems.

Features

  • Complies with Bluetooth V4.1, ETSI EN 300 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US), and ARIB STD-T66 (Japan)
  • Supports up to 8 Bluetooth Smart connections
  • Fast cold boot in less than 30ms
  • Processing power:
    • 16MHz 32-bit ARM Cortex-M0 with SWD interface
    • Dedicated Link Layer Processor
    • AES-128 bit encryption Processor
  • Memories:
    • 32kB One-Time-Programmable (OTP) memory
    • 42kB System SRAM
    • 84kB ROM
    • 8kB Retention SRAM
  • Power management:
    • Integrated Buck/Boost DC/DC converter
    • P0, P1, and P2 ports with 3.3V tolerance
    • Easy decoupling of only 4 supply pins
    • Supports coin (typ. 3.0V) and alkaline (typ. 1.5V) battery cells
    • 10-bit ADC for battery voltage measurement
  • Digital controlled oscillators:
    • 16MHz crystal (±20ppm max) and RC oscillator
    • 32kHz crystal (±50ppm, ±500ppm max) and RCX oscillator
  • General purpose, Capture and Sleep timers
  • Digital interfaces:
    • Gen. purpose I/Os: 14 (WLCSP34), 24 (QFN40)
    • 2 UARTs with hardware flow control up to 1MBd
    • SPI+™ interface
    • I2C bus at 100kHz, 400kHz
    • 3-axes capable Quadrature Decoder
  • Analog interfaces:
    • 4-channel 10-bit ADC
  • Radio transceiver
    • Fully integrated 2.4GHz CMOS transceiver
    • Single wire antenna: no RF matching or RX/TX switching required
    • Supply current at VBAT3V
      • TX: 3.4mA, RX: 3.7mA (with ideal DC-DC)
    • 0dBm transmit output power
    • -20dBm output power in "Near Field Mode"
    • -93dBm receiver sensitivity
  • Packages:
    • WLCSP 34 pins, 2.436mm x 2.436mm
    • QFN 40 pins, 5mm x 5mm

Applications

  • Wireless charging (A4WP)
  • HCI

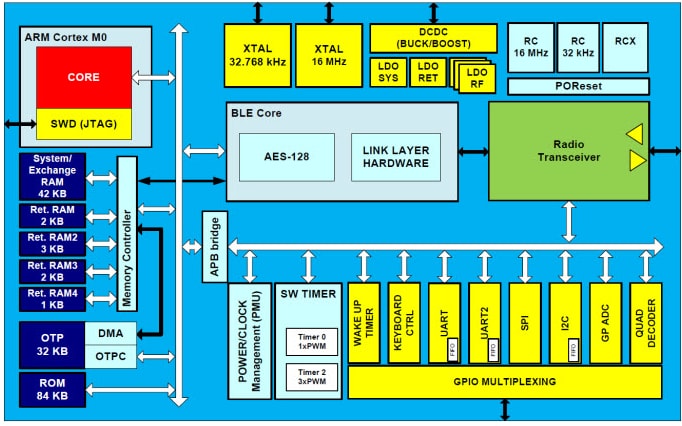

Block Diagram

Block Diagram - Renesas / Dialog DA14581 Low Power BLUETOOTH Smart SoC
