Texas Instruments LP-CC2652PSIP LaunchPad™ Development Kit
Texas Instruments LP-CC2652PSIP LaunchPad™ Development Kit is a platform for evaluating the performance of the SimpleLink™ multistandard CC2652PSIP wireless SIP module. The CC2652PSIP offers an integrated power amplifier MCU with support for BLUETOOTH® 5 Low Energy (LE) and IEEE 802.15.4-based protocols, including ZigBee® and Tl 15.4 applications. Software support is offered by the CC13XX-CC26XX software development kit (SDK).
Features
- Access all I/O signals with the BoosterPack™ plug-in module connectors
- Connect your LaunchPad™ development kit to the cloud with BLUETOOTH® Low Energy on your smartphone
- Upgrade the LaunchPad development kit firmware over the air from the SimpleLink starter app
Kit Contents
- Micro USB cable
- Quick start guide
Associated Products
Texas Instruments MCU inalámbrico multiprotocolo SimpleLink™ CC2652P
Diseñado para Zigbee®, Thread, BLUETOOTH® 5 Low Energy, objetos inteligentes habilitados para IPv6 e IEEE 802.15.4g.

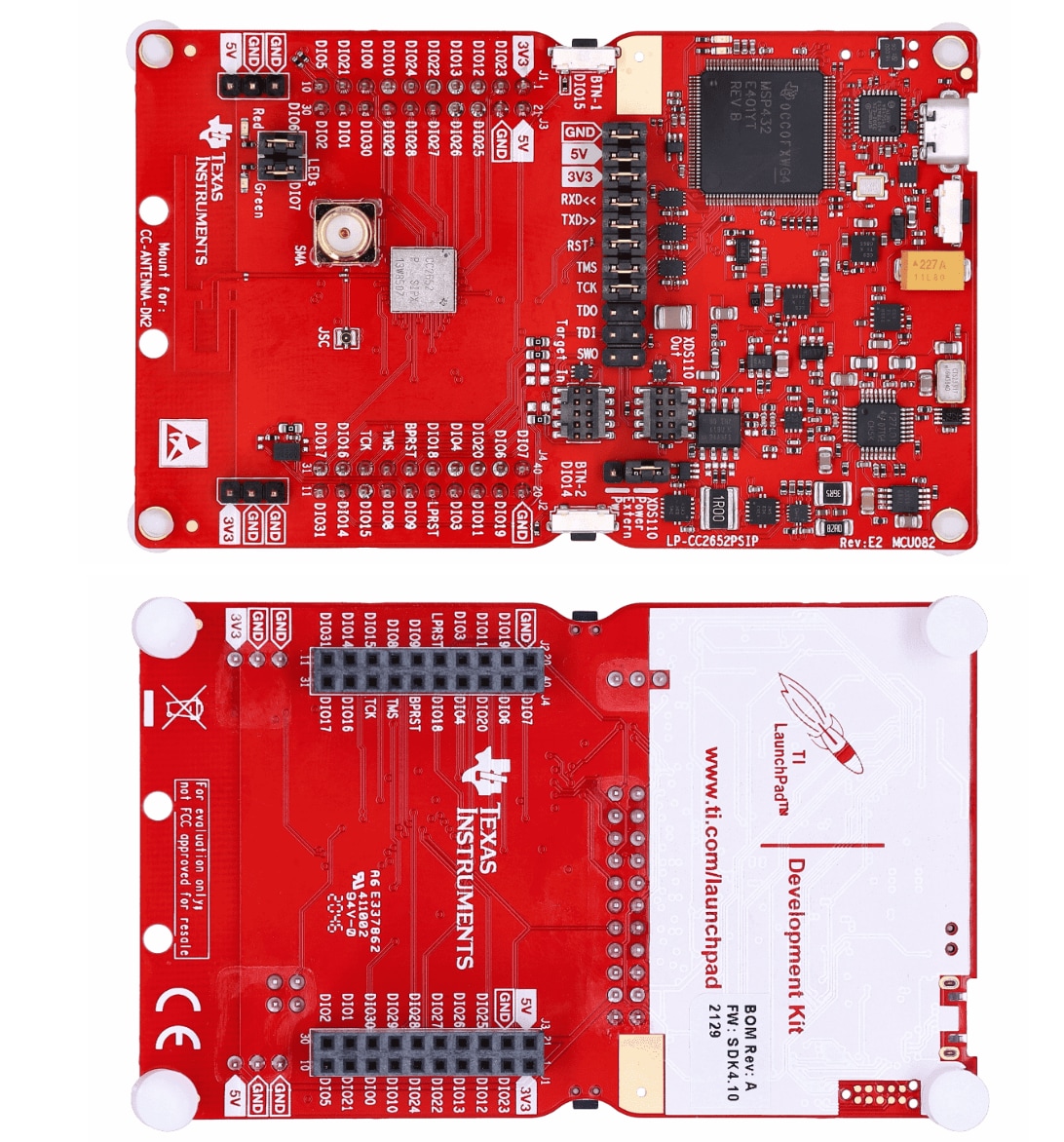

PCB Layout

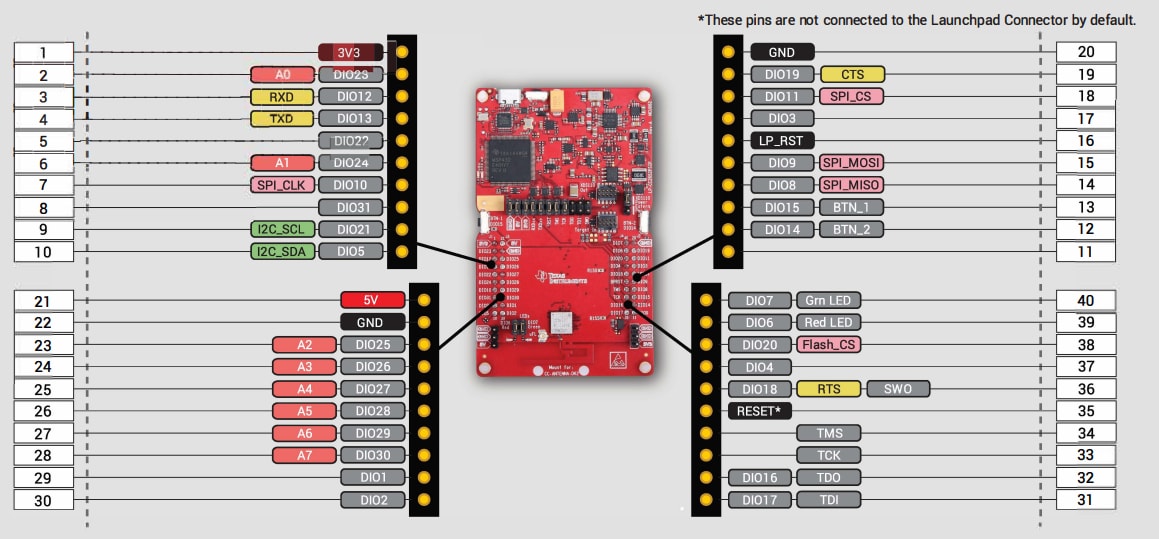

Pinout
Publicado: 2022-12-07
| Actualizado: 2022-12-23
